Automobile Ring Gear Production Equipment

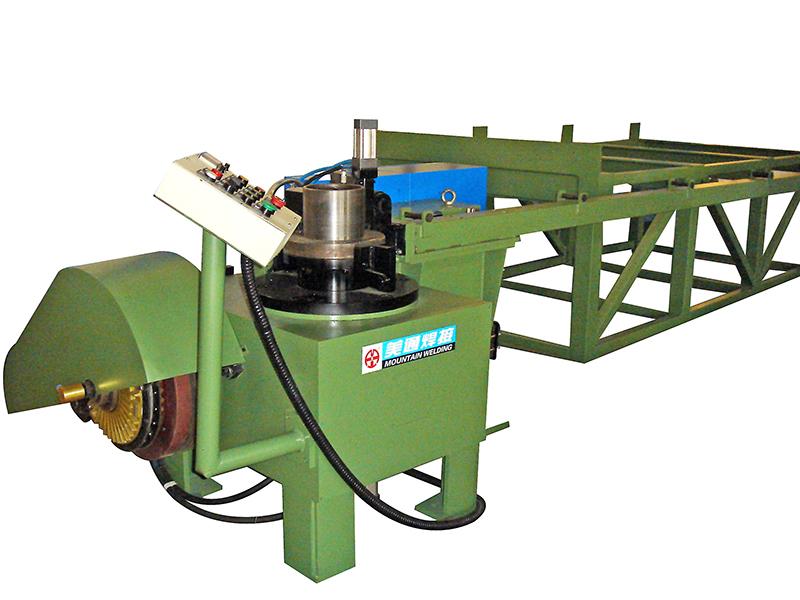

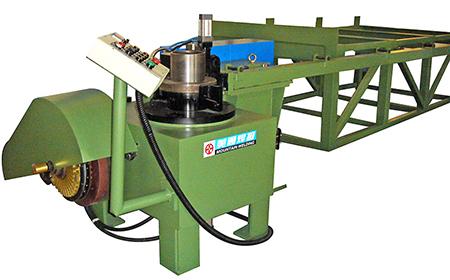

1. Roll Coiler Machine (Horizontal)

Features of the 1-roll coiler include:
Rigid frame, follow up roll, feed rolls, oil bath gearbox drive,
entry guide system with pneumatic clutch, and horizontal coiling configurations

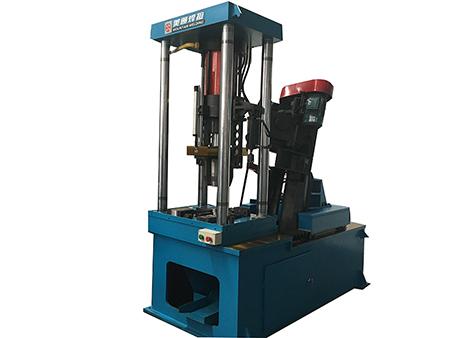

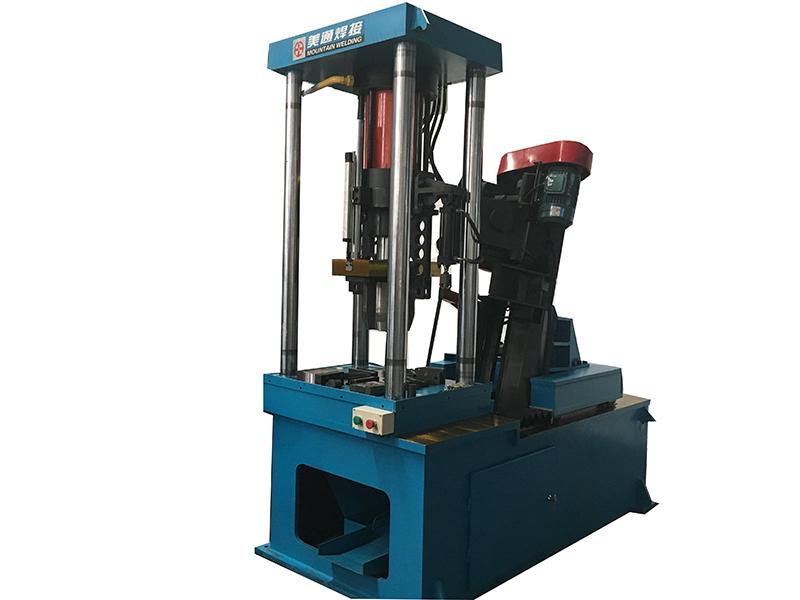

2. Expander & Cutting

An operator will manually load a ring coiler onto the tooling.
The operator will press palm buttons to start the expanding and cutting cycle.
The ring coiler will be cut to single ring.
The operator will manually unload the rings from the tooling.

3. Butt Welding Machine

Flash butt welder and flashless resistance butt welder. Equipped with servo hydraulic drive.
PLC touch screen control adjustment curve
Servo control
Beryllium bronze electrode

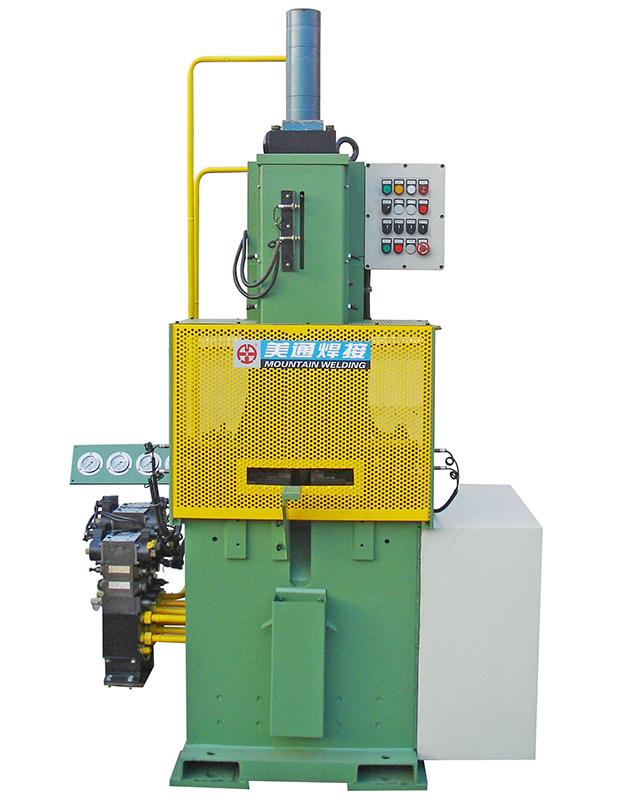

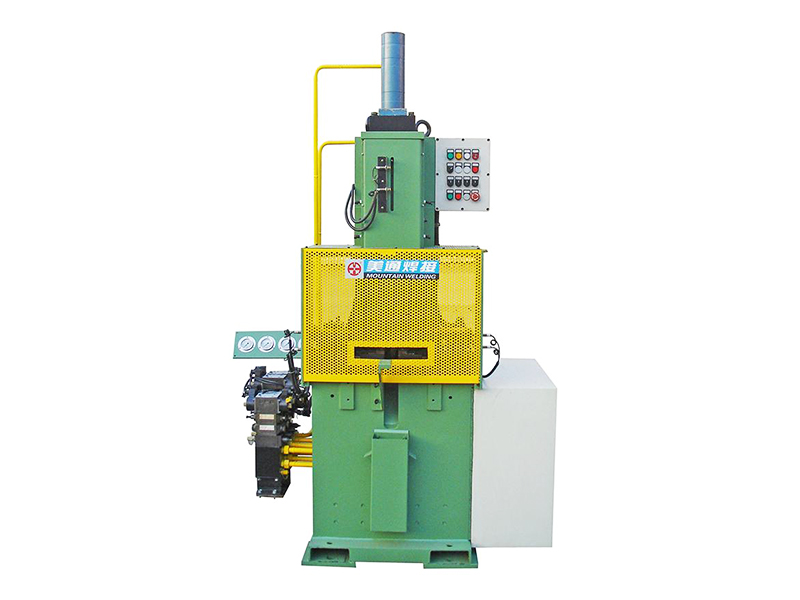

4. Trimmer

This slag planer uses a hydraulic oil cylinder to apply force for slag planning with a simple structure and stable working conditions. The planer tool’s position is easily adjustable, and the single cylinder clamping is equipped with a tin bronze guide rail, and multi-point automatic lubrication, while the coil iron filing control is equipped with a slag chip removal mechanism, and quick-change tool holder mechanism.

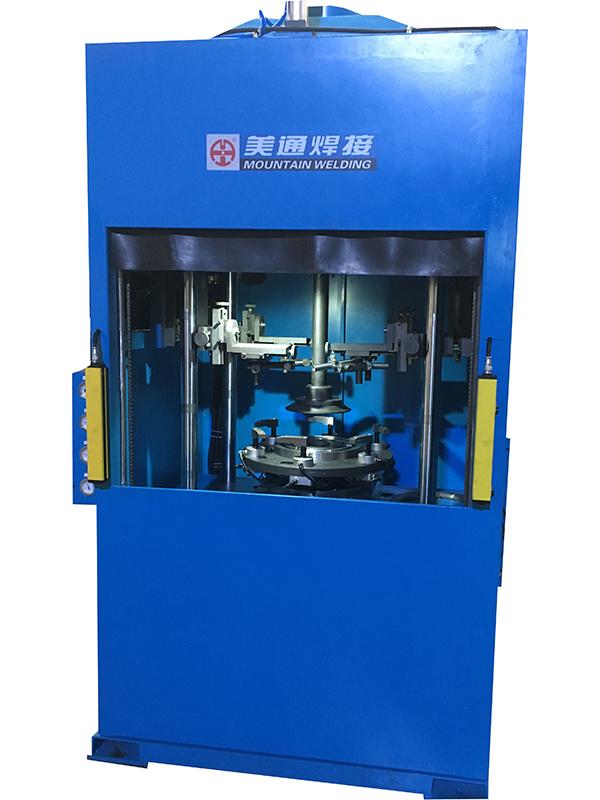

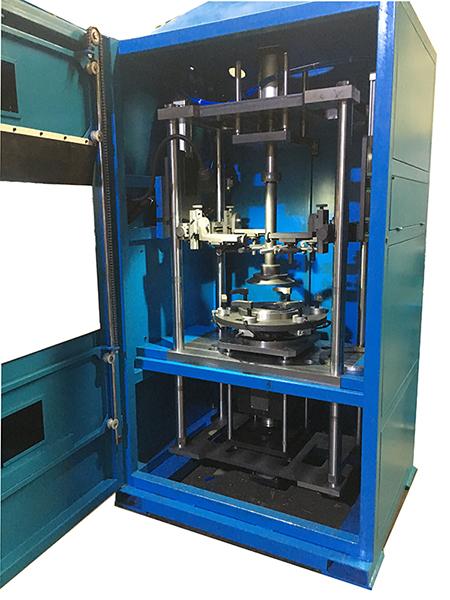

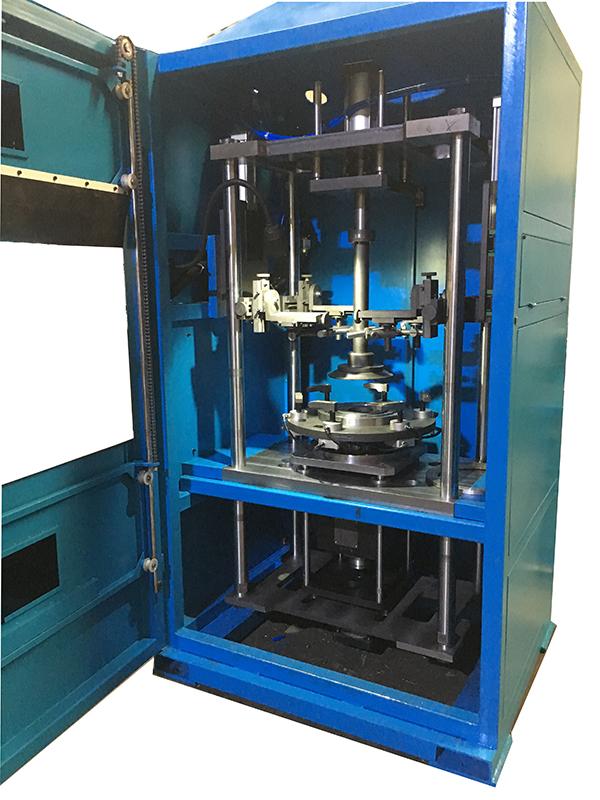

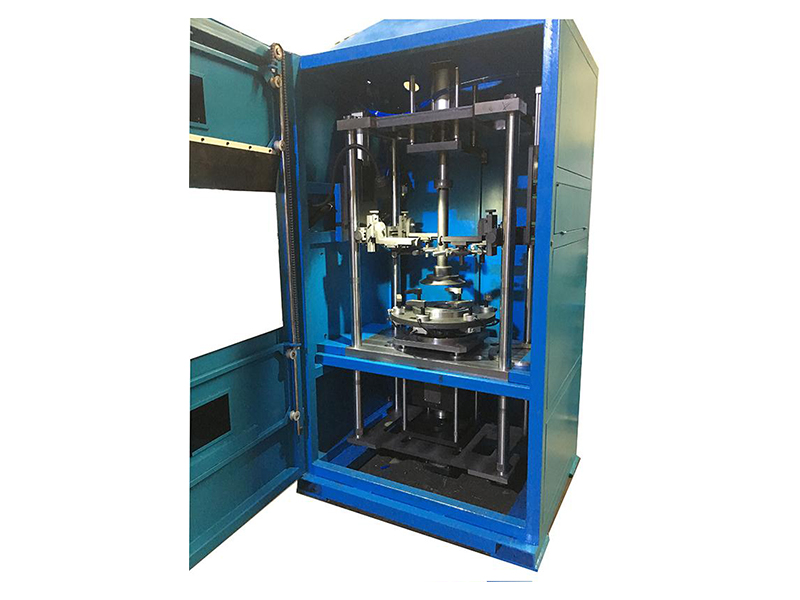

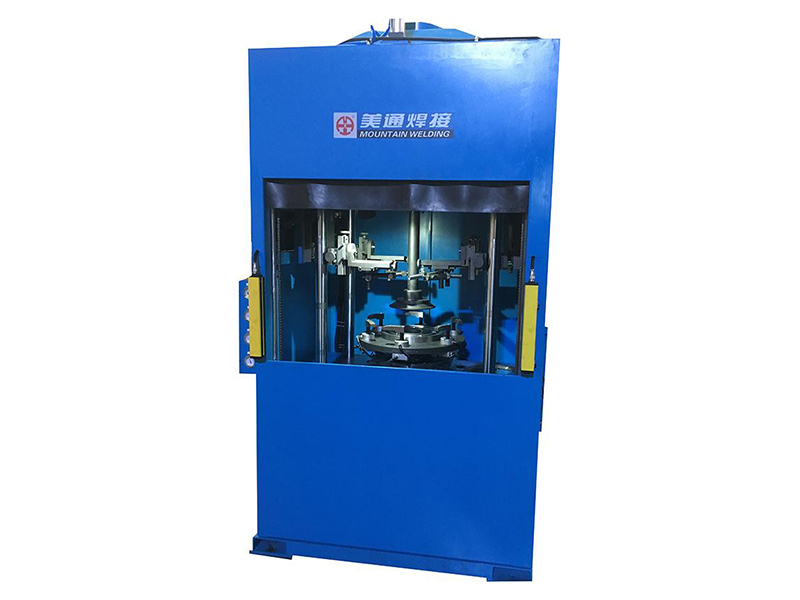

5. 4 Torches MIG Assembling Welding Machine

Specifications

Gas: -Mix of gas for arc welding process: 83% Ar and 17% CO2;
Wire: - Wire diameter: 1,0 or 1,2 mm;
Wire feeder and Welding Power – Panasonic or Lincoln
Torch: - Quantity: 4
Adjustment of the torches: adjustment in three axis (x, y and z)
Welding torch –Panasonic/ BINZEL
Torch Support
Strong, durable and precise structure
Easy positioning system adjustment of the torches Eject cylinder: - After welding, the ring is unloading by the eject cylinder
Provide 2 large, lateral windows and doors to allow for easy operator access
